Installing a new ignition after theft attempt!

Post by macroverb »

Hi there! My recently-inherited and beloved 2011 PCX Tristan got real bashed up recently when some folks tried to steal her- so I'm using the damage to her as an opportunity to learn about repair and maintenance! Having stripped her down, the fundamental problem right now is the ignition- when the thieves tried to hotwire the bike, they pulled some wires out from the socket leading from the ignition barrel to the wiring harness.

Now at first, I (very silly-ly) tried to re-solder ignition wires back in place without realising the missing socket was what I needed (I know, bad mistake). What I achieved doing this was melting the plastic socket (I think it's called a crimp maybe? Excuse my ignorance) somewhat, as you can see below.


Flash forward a while, and I realise my mistake, buy a new ignition barrel, and try to plug it back into that half-melted socket. It clicks into place well enough, but the bike won't turn on. I've charged the battery and made sure it's properly connected, but still no dice, not a sign of life in her.


Any advice on what I should do next? Is it worth trying to order and install a new plastic socket-boyo? I'm not sure what the problem is right now and feel like I'm bashing my head against a brick wall here!
relatively new rider in northern ireland! keen to learn everything i can to get my 2011 PCX 'Tristan' repaired and back on the road!
User avatar
Gil
Frequent Poster
Frequent Poster
Posts: 623
Joined: Mon Nov 09, 2015 10:20 pm
Year: 2013
Color: black
Location: Watsonville, CA

Re: Installing a new ignition after theft attempt!

Post by Gil »

Check your fuses.
  • 2013 Honda PCX 150, NCY Variator kit, Dr Pulley 13g Roller weights
  • IRC and City Grip tires, LED driving lights, Coroplast top box, MFR exhaust, Daytona Windshield.
User avatar
Mel46
Forum Benefactor
Forum Benefactor
Posts: 6964
Joined: Tue Nov 13, 2012 5:13 pm
Year: 2013
Color: red PCX
Location: Dallas, Ga USA

Re: Installing a new ignition after theft attempt!

Post by Mel46 »

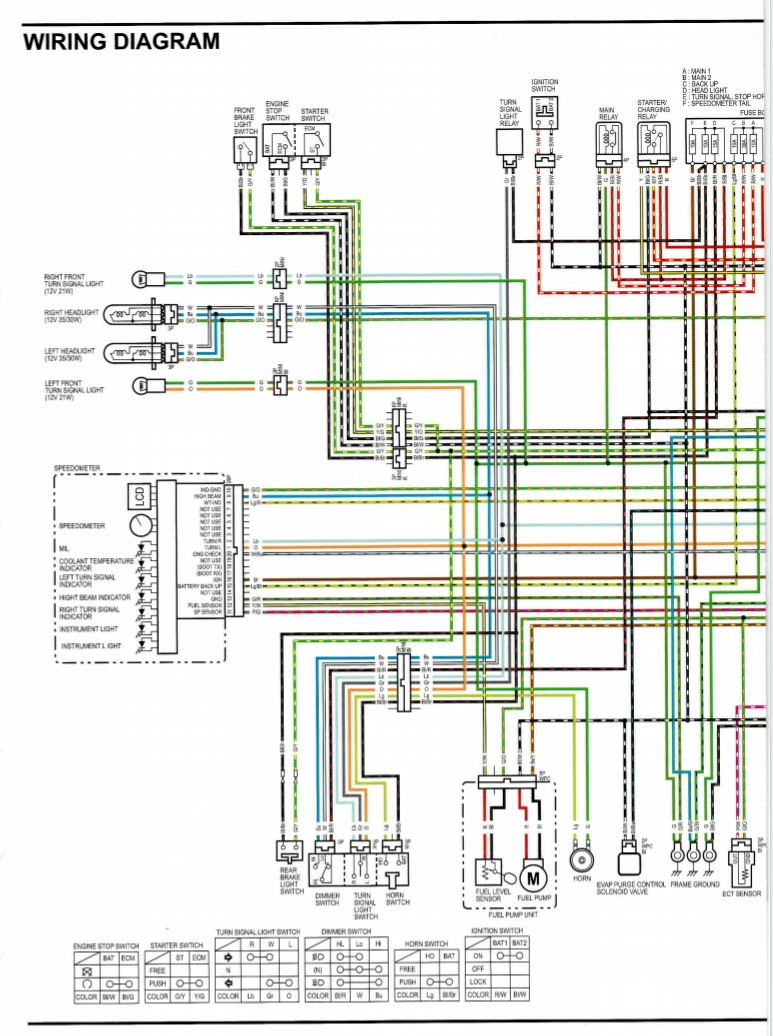

Do you have a wiring diagram?
Wiring diagram 1.jpg
Wiring diagram 1.jpg (330.46 KiB) Viewed 755 times
Wiring diagram 2.jpg
Wiring diagram 2.jpg (320.82 KiB) Viewed 755 times
These are screenshots so I can't get better clarity. Sorry.
