Is someone here who can tell me about this connector at front of my pcx 2010, it's for what about?? Because I'm looking for a connection to a charger!

There are plenty of all PCX wire harness schematics out there on the Internet to look for it in. This is the US 2011 125 version. From my 2013 PCX 150 I have not seen a connector that looks like that yet. From the electrical tape in the picture maybe it is something someone changed???

http://www.powershondaparts.com/oempart ... re-harness

Almost looks like a high-current outlet used in businesses - in the uk they will be 16/32A. Strange to have anything like that on the PCX, albeit for 12v charging or such as I imagine whoever installed it had it to hand. Looks very odd though.

I am sure that is an add on connector. The only way to be sure what it is for would be to track down the wiring and see what it is connected to. My 2 guesses would be either to the battery for a charger or to a heating element for engine pre-heat in winter.

stryder123 wrote:I am sure that is an add on connector. The only way to be sure what it is for would be to track down the wiring and see what it is connected to. My 2 guesses would be either to the battery for a charger or to a heating element for engine pre-heat in winter.

It looks like an add on connector but does it matter? Cut it off and see if the wires have a live and earth?

I unconnected, that's only a plug nothing on the black filled is only for protect water and dust there isn't anything plugged!! Ok maybe the honda shop can tell me but in Thailand isn't it easy to get a right answer and I don't have a voltmeter with me. This connector are blind and fixed in front at headlight. Where are the 12 V connector at the newer models are plugged on?? Maybe it's at this? I put on a oter pic where u can see the position where the connector are fixed. Or maybe I bye a voltmeter but have 2 or 3 at my home not need more.
There are 2 small pins in!!

Hi sol.like can you please submit larger photos? It's difficult for us to see what we're looking at and its exact location. I think it would help everyone

If u tell me who I can I always get the message nit larger then 120 × 120 it's also boring and difficult for me to make the pics smaler. Please tell who I can do

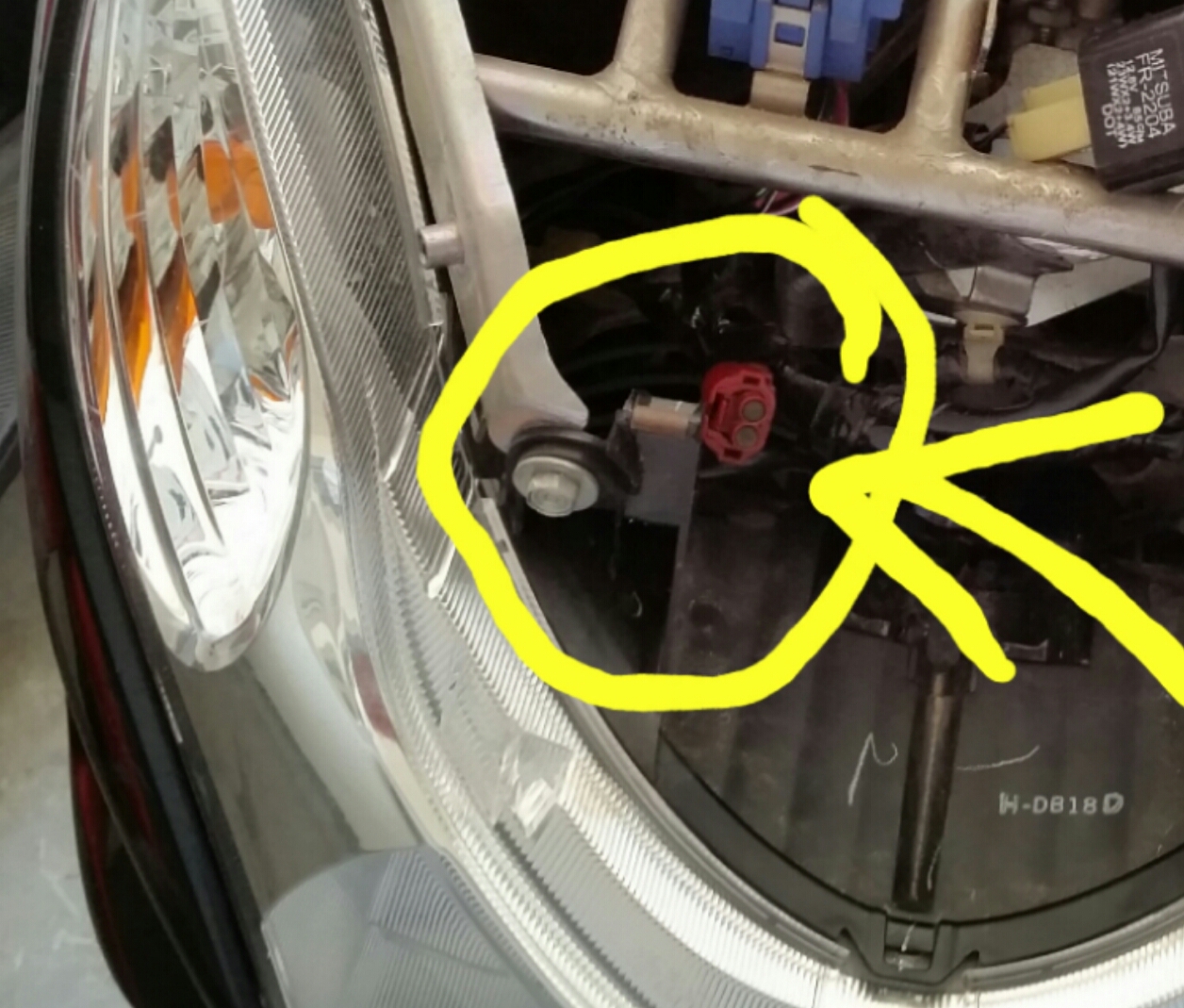

Here a better pic, sorry

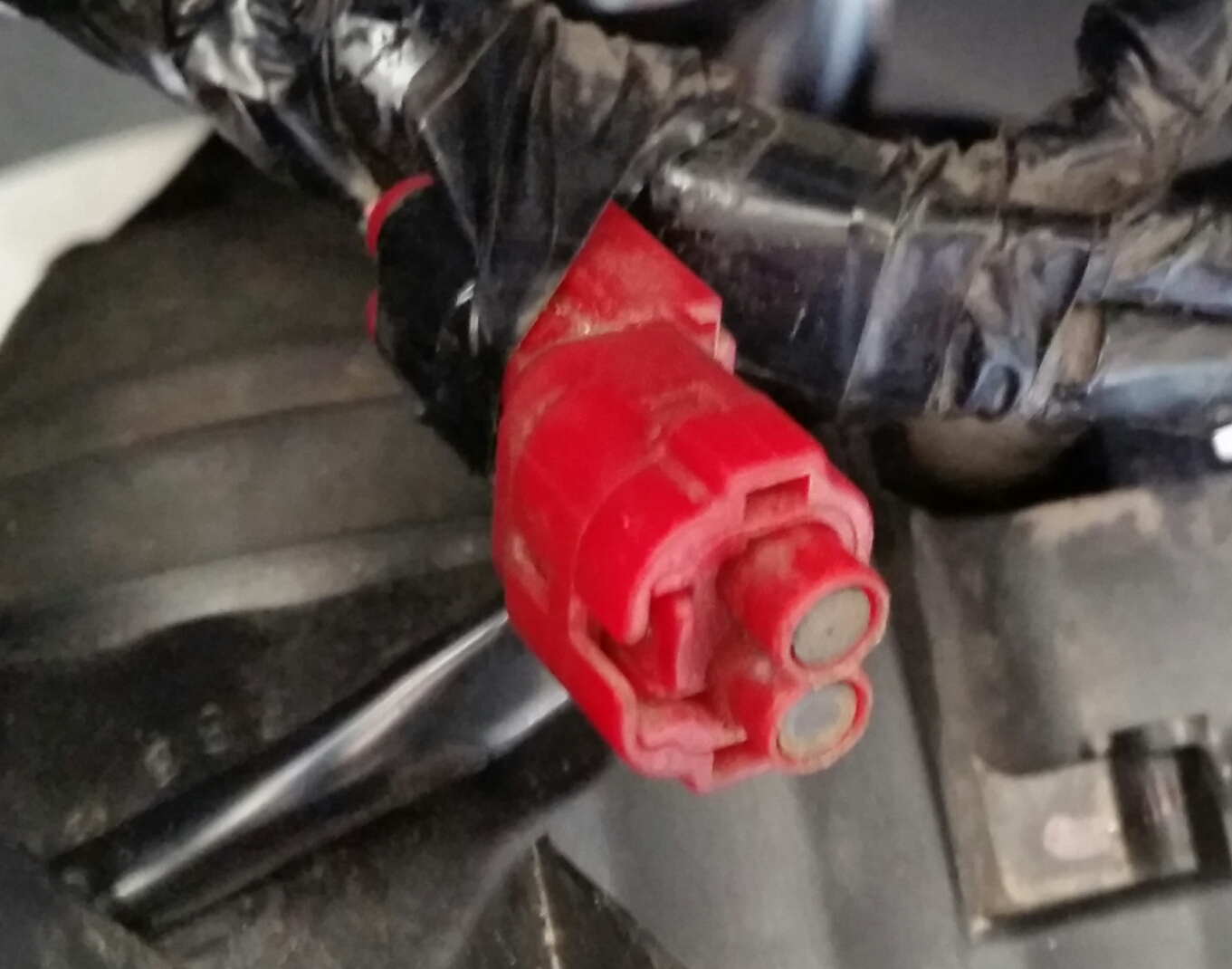

And the connector
