Anybody know where '13 speed sensor plug is located?

Post by ScottDR »

Hi all!

I bought a 12 Oclock Labs speedometer adjuster and am hoping to install it soon.

Anyone?

Thank you!
2013 Black PCX 150
Mods/accessories:
Honda tall windshield, Honda top box, NCY variator and face with 13gram rollers, LED headlamps & taillight with, Backoff indicator
Kawell rectangular lights-fork, mounted
Cheeky Seats seat cover (de-humped), YSS PDC and front spring upgrade 15W fork fluid, YSS rear spring/damper upgrade-preload adjustable only, lots of reflective tape and other accessories

Previously owned:
1969 Honda K50 mini trail (first bike, still runs great and in the family)
1975 Honda CB125
1978 Yamaha DT400 (bored 2 stroke insanity)
1986 Kawasaki Ninja 250r
Top
Inoplanetyanin
Regular User
Regular User
Posts: 250
Joined: Mon May 21, 2012 4:37 pm
Year: 2018
Color: WHITE
Location: Castaic, CA

Re: Anybody know where '13 speed sensor plug is located?

Post by Inoplanetyanin »

Sorry, have no idea what that is, how it works or why would you need it.
Top
ScottDR
Forum Benefactor
Forum Benefactor
Posts: 314
Joined: Tue Jun 14, 2016 9:37 pm
Year: 2013
Color: Black
Location: Blyth, ON Canada

Re: Anybody know where '13 speed sensor plug is located?

Post by ScottDR »

Well, I see in the wiring diagram that there are at least 2 plugs. Anyone know where one can be accessed?
2013 Black PCX 150
Mods/accessories:
Honda tall windshield, Honda top box, NCY variator and face with 13gram rollers, LED headlamps & taillight with, Backoff indicator
Kawell rectangular lights-fork, mounted
Cheeky Seats seat cover (de-humped), YSS PDC and front spring upgrade 15W fork fluid, YSS rear spring/damper upgrade-preload adjustable only, lots of reflective tape and other accessories

Previously owned:
1969 Honda K50 mini trail (first bike, still runs great and in the family)
1975 Honda CB125
1978 Yamaha DT400 (bored 2 stroke insanity)
1986 Kawasaki Ninja 250r
Top
User avatar
Gil
Frequent Poster
Frequent Poster
Posts: 623
Joined: Mon Nov 09, 2015 10:20 pm
Year: 2013
Color: black
Location: Watsonville, CA

Re: Anybody know where '13 speed sensor plug is located?

Post by Gil »

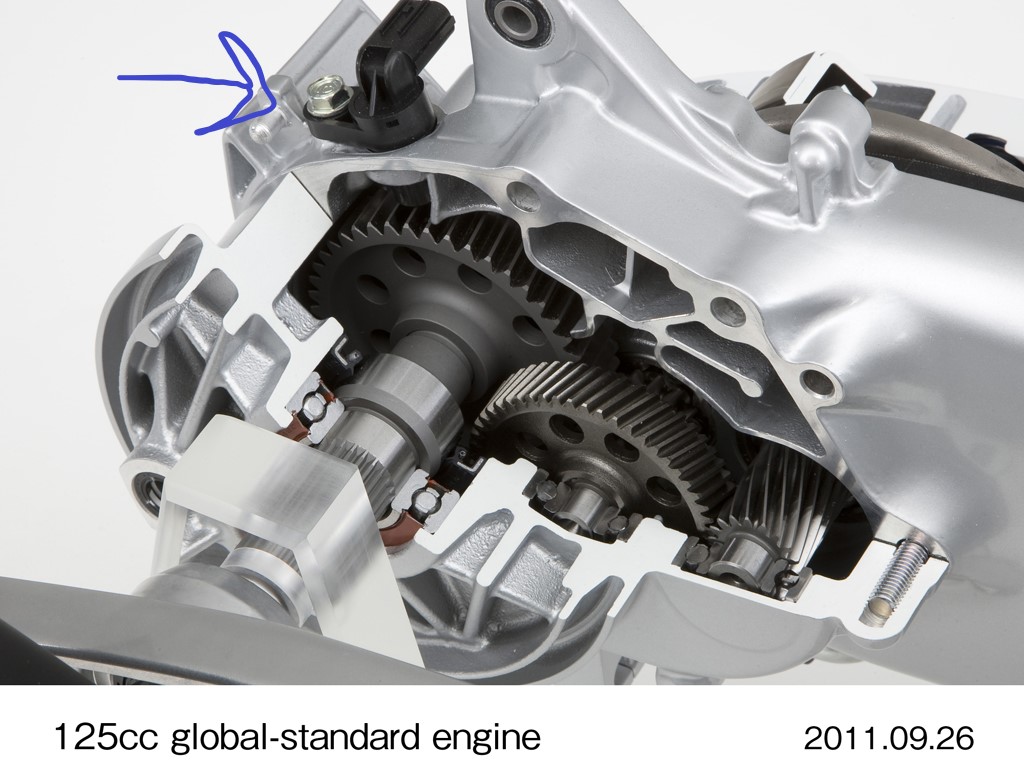

It's located on the rear final reduction gear, just behind the rear shock and under a plastic guard. The arrow in the picture.
Attachments
  • 2013 Honda PCX 150, NCY Variator kit, Dr Pulley 13g Roller weights
  • IRC and City Grip tires, LED driving lights, Coroplast top box, MFR exhaust, Daytona Windshield.
Top
ScottDR
Forum Benefactor
Forum Benefactor
Posts: 314
Joined: Tue Jun 14, 2016 9:37 pm
Year: 2013
Color: Black
Location: Blyth, ON Canada

Re: Anybody know where '13 speed sensor plug is located?

Post by ScottDR »

Thanks Gil! Is there a matching electrical connector for it at any other point up to the gauges?
2013 Black PCX 150
Mods/accessories:
Honda tall windshield, Honda top box, NCY variator and face with 13gram rollers, LED headlamps & taillight with, Backoff indicator
Kawell rectangular lights-fork, mounted
Cheeky Seats seat cover (de-humped), YSS PDC and front spring upgrade 15W fork fluid, YSS rear spring/damper upgrade-preload adjustable only, lots of reflective tape and other accessories

Previously owned:
1969 Honda K50 mini trail (first bike, still runs great and in the family)
1975 Honda CB125
1978 Yamaha DT400 (bored 2 stroke insanity)
1986 Kawasaki Ninja 250r
Top
User avatar
Gil
Frequent Poster
Frequent Poster
Posts: 623
Joined: Mon Nov 09, 2015 10:20 pm
Year: 2013
Color: black
Location: Watsonville, CA

Re: Anybody know where '13 speed sensor plug is located?

Post by Gil »

I don't think their is another spot on the wiring harness where you could splice it in. If it's like the one on the picture, then you could tuck the water sensitive part of the adjuster at a dryer spot. Probably by the throttle body.
Attachments

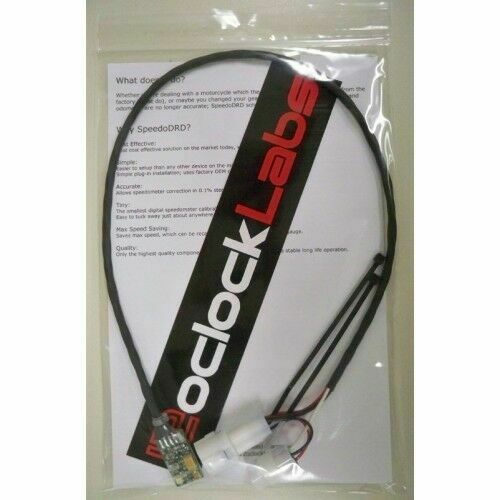

Has a long wiring harness, so you should be able to mount it on a dry spot.
Has a long wiring harness, so you should be able to mount it on a dry spot.
  • 2013 Honda PCX 150, NCY Variator kit, Dr Pulley 13g Roller weights
  • IRC and City Grip tires, LED driving lights, Coroplast top box, MFR exhaust, Daytona Windshield.
Top
ScottDR
Forum Benefactor
Forum Benefactor
Posts: 314
Joined: Tue Jun 14, 2016 9:37 pm
Year: 2013
Color: Black
Location: Blyth, ON Canada

Re: Anybody know where '13 speed sensor plug is located?

Post by ScottDR »

Ok, thanks. Yes it has a pair of matching connectors(in and out) for the sensor.

Cheers!
2013 Black PCX 150
Mods/accessories:
Honda tall windshield, Honda top box, NCY variator and face with 13gram rollers, LED headlamps & taillight with, Backoff indicator
Kawell rectangular lights-fork, mounted
Cheeky Seats seat cover (de-humped), YSS PDC and front spring upgrade 15W fork fluid, YSS rear spring/damper upgrade-preload adjustable only, lots of reflective tape and other accessories

Previously owned:
1969 Honda K50 mini trail (first bike, still runs great and in the family)
1975 Honda CB125
1978 Yamaha DT400 (bored 2 stroke insanity)
1986 Kawasaki Ninja 250r
